Perforated Metal Mesh Manufacturing Process

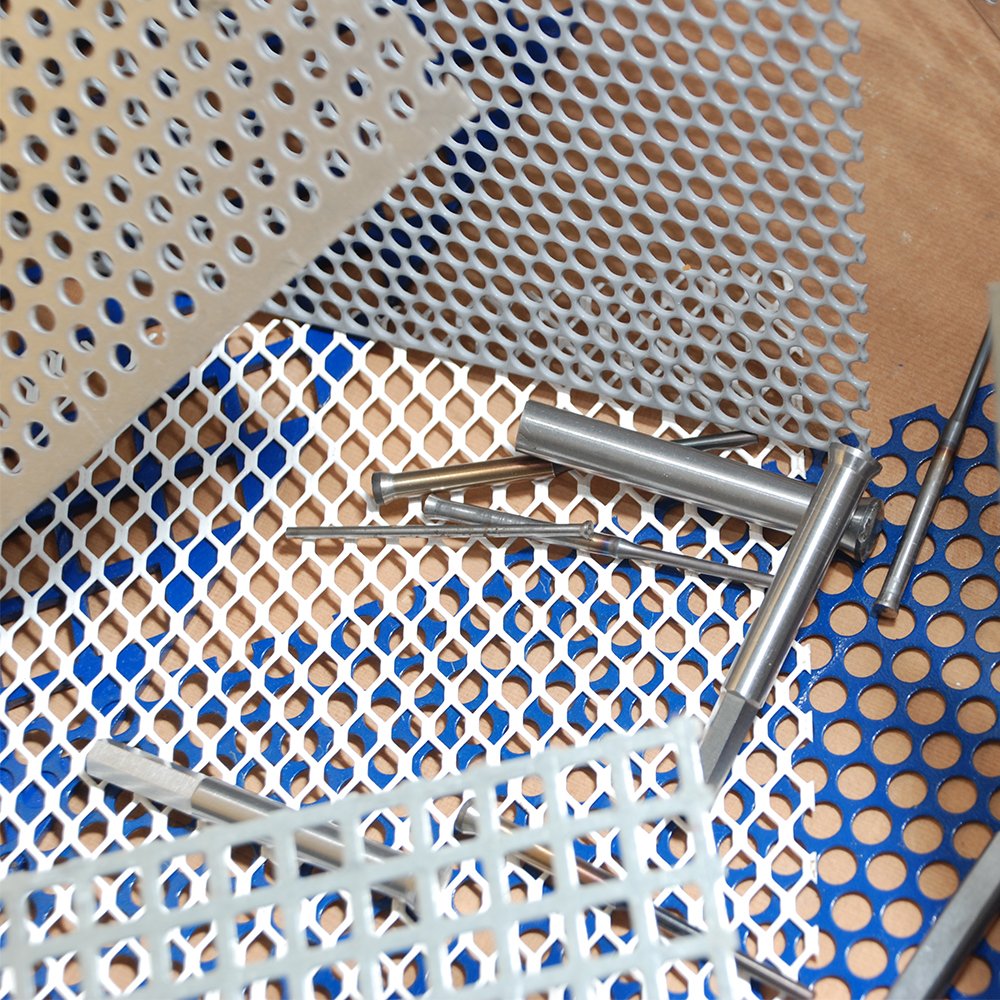

●Punching: This is the most common method. A punching machine uses a die to punch holes in the metal sheet. The die is designed according to the desired hole shape (such as round, square, slotted, etc.) and pattern. During the punching process, the metal sheet is placed between the punch and the die, and the punch exerts force to cut through the metal, creating the holes.

●Laser Cutting: In this process, a high – powered laser beam is used to cut holes in the metal. Laser cutting offers high precision and can create complex hole patterns. It is especially suitable for thin – gauge metals and when very small or intricate holes are required. However, it is generally more expensive than punching.

Perforated Metal Mesh Hole Shapes and Patterns

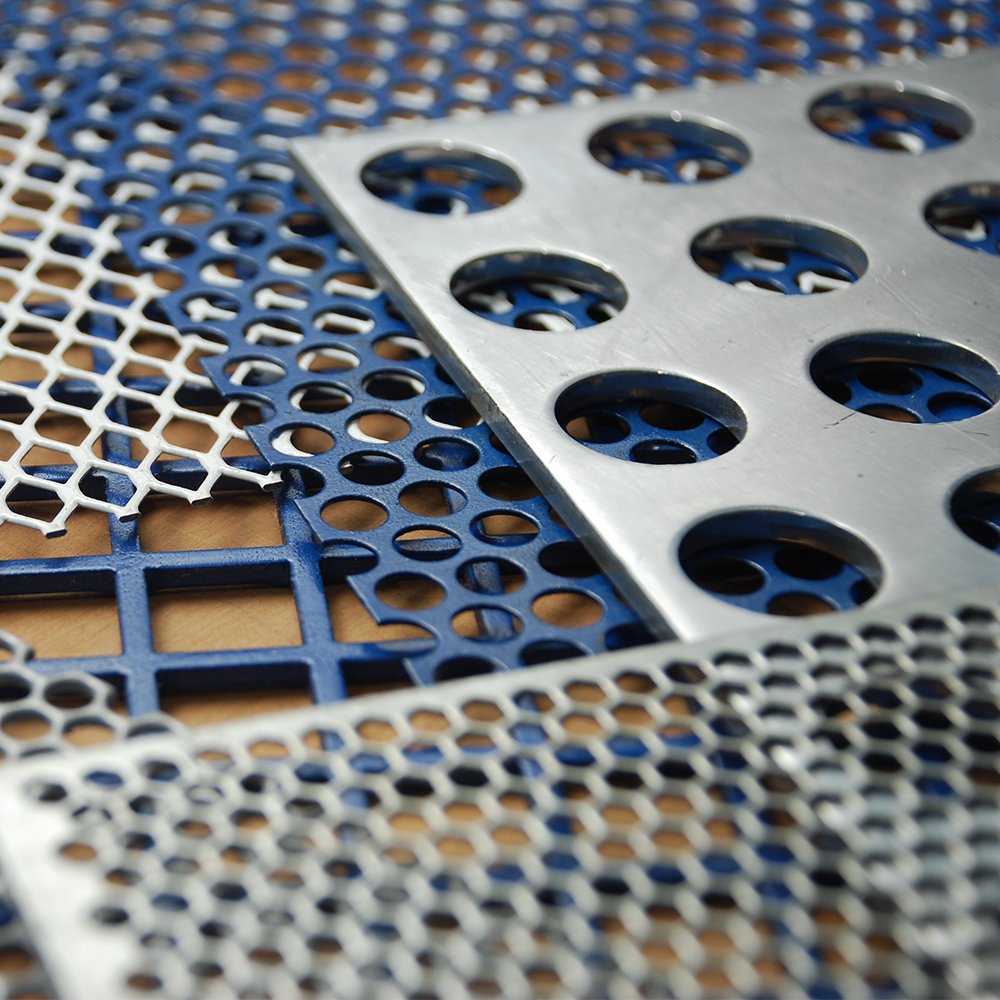

●Hole Shapes

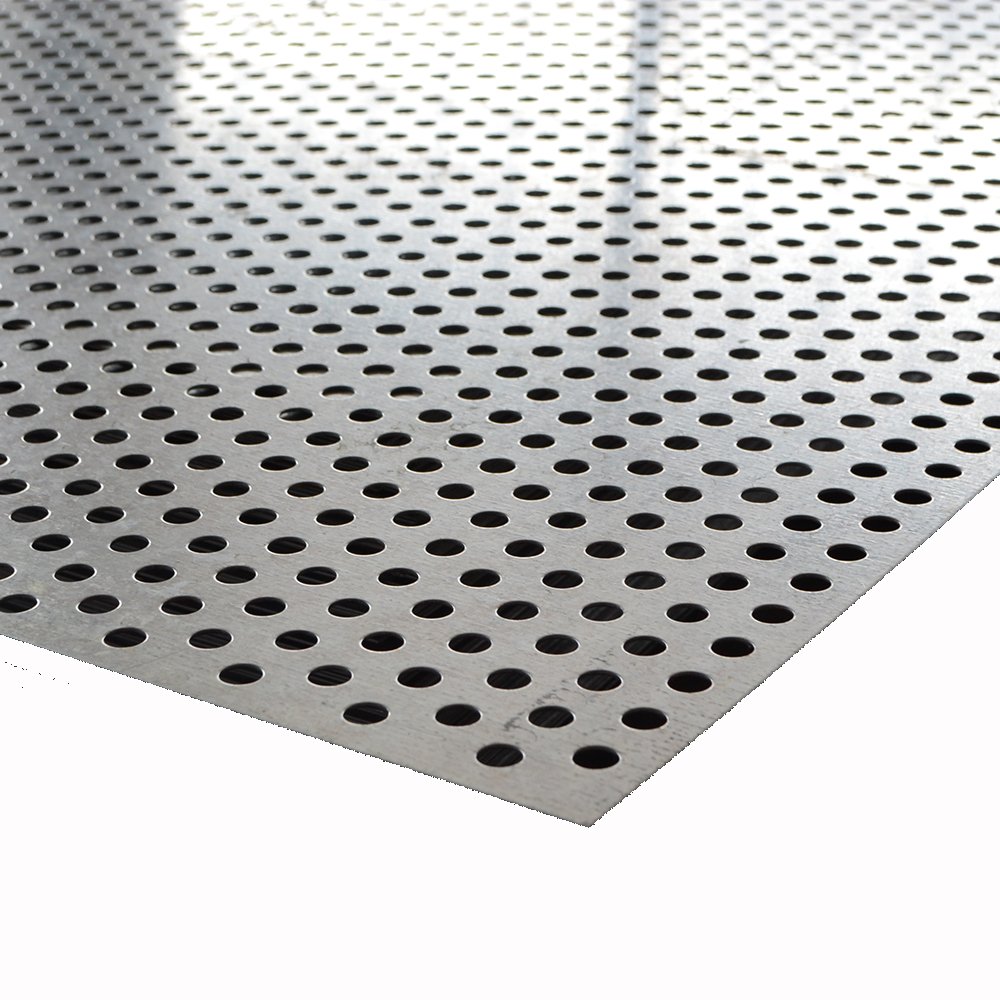

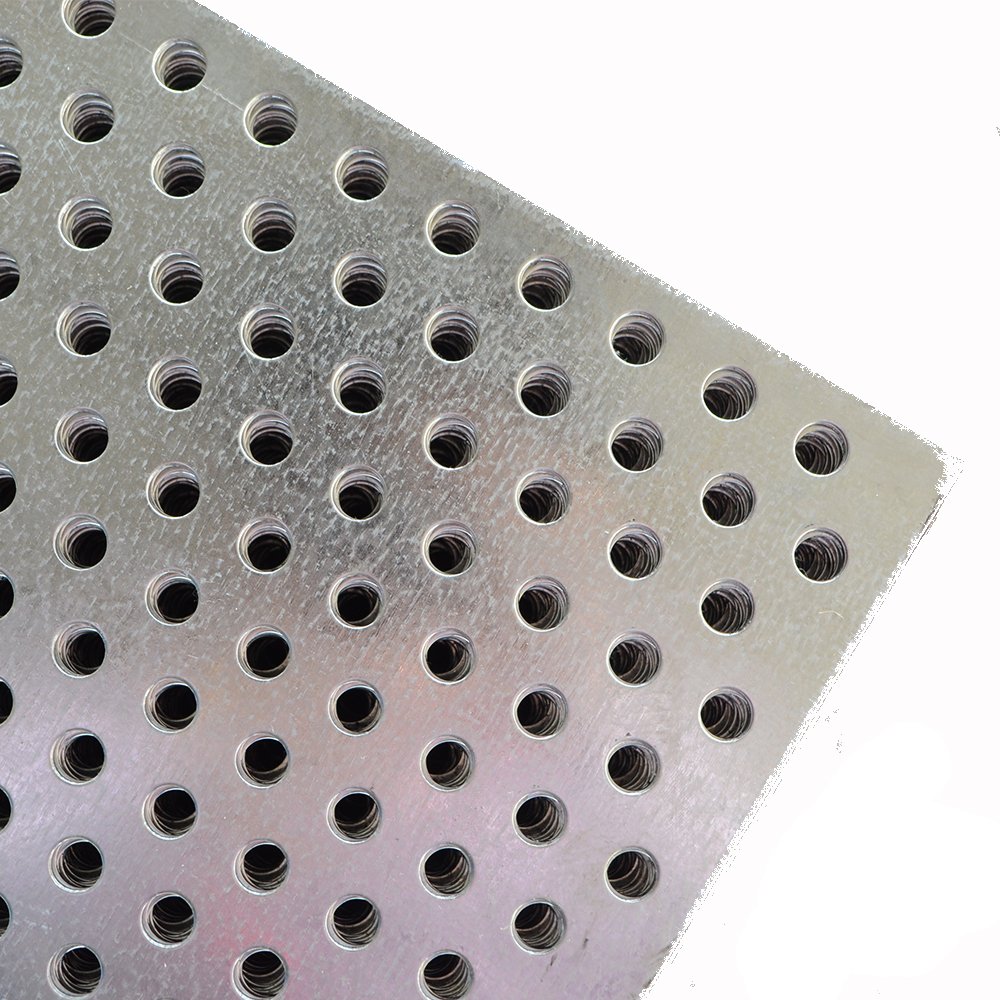

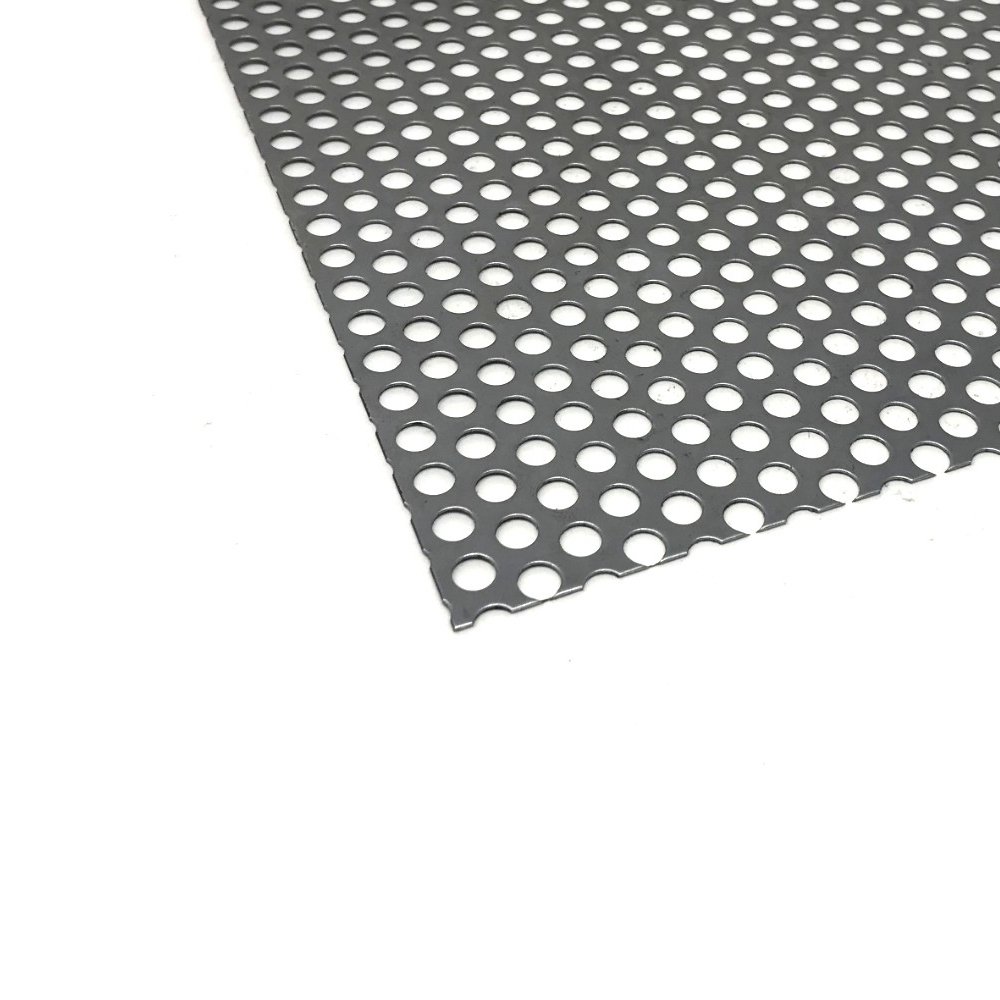

○Round Holes: The most common shape. They offer a good balance between strength and permeability. Round holes are widely used in applications where uniform flow of air, liquid, or light is needed.

○Square Holes: Provide a more geometric and modern appearance. They are often used in architectural and decorative applications. Square holes can also offer better strength in certain directions compared to round holes.

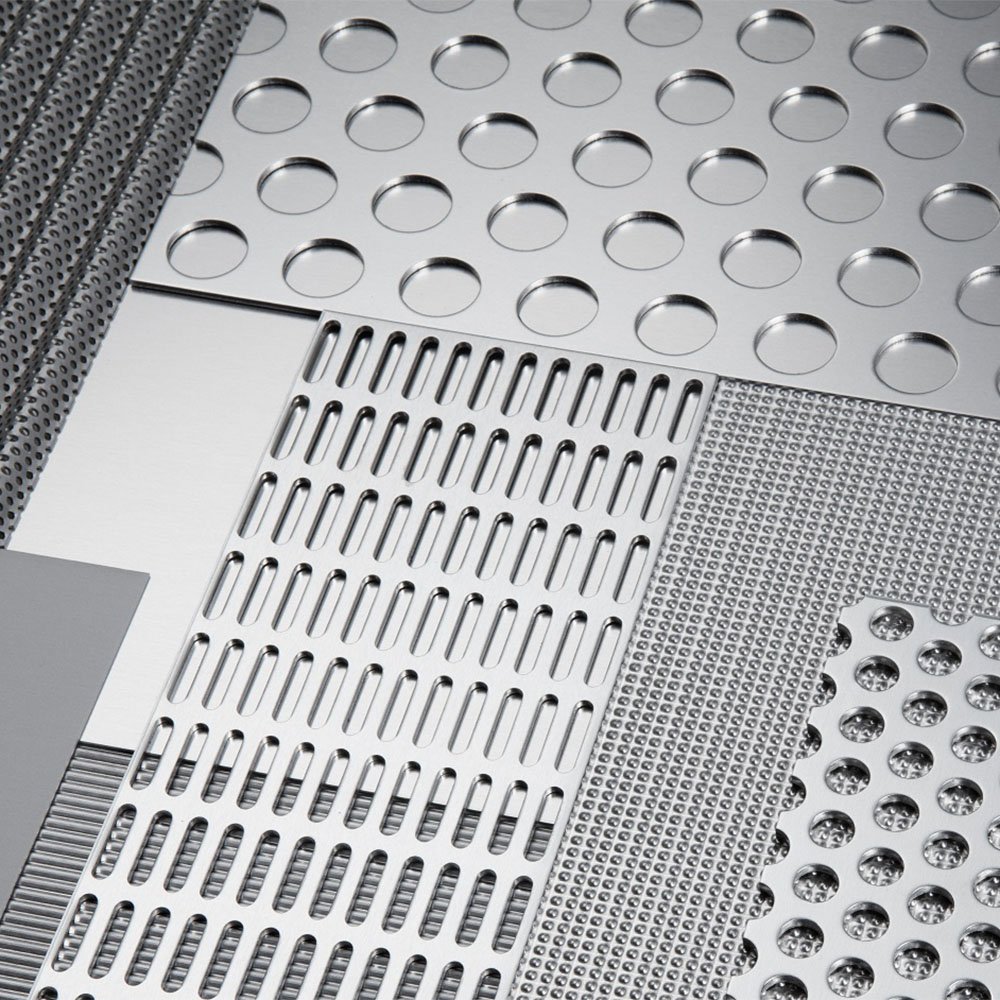

○Slotted Holes: These are elongated holes. Slotted perforated metal mesh is useful when a high degree of directional flow is required, such as in ventilation systems or for filtering long – shaped particles.

Perforated Metal Mesh Patterns

○Straight Pattern: Holes are arranged in a simple grid pattern, either in rows and columns. This pattern is easy to manufacture and is commonly used in industrial applications.

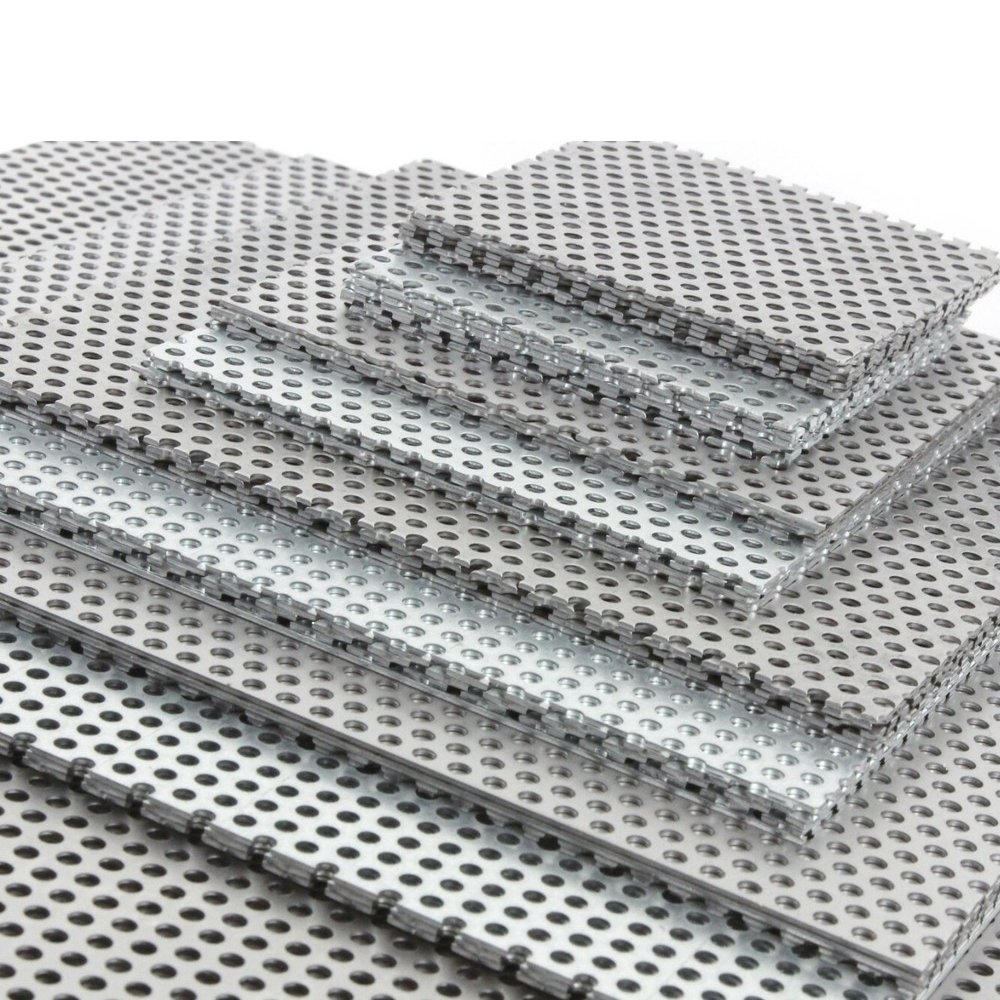

○Staggered Pattern: The holes are offset from one row to the next. This pattern can provide better strength and a more uniform distribution of stress on the metal sheet. It is also often used to increase the open area while maintaining the structural integrity of the mesh.
